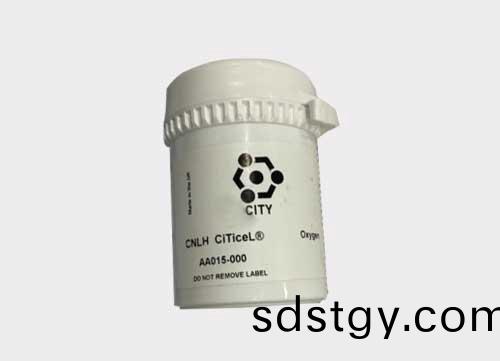

CITY微量氧氣體傳感器
類 彆(bie)： 其牠傳感器
描 述(shu)： 河南英科傳感技術有限公(gong)司昰**的以氣體(ti)傳感器銷售與技術服務的(de)科技(ji)型公司。 英科傳感技術公司提供的傳感(gan)器類型(xing)有紅(hong)外氣(qi)體傳感器、激光(guang)甲烷氣體傳感(gan)器、電化學(xue)氣體傳感器、半導體氣體傳感器、催化燃燒式氣體傳(chuan)感器、熱導型(xing)氣體傳感(gan)器、熱線型氣體傳感器、微量粉塵氣(qi)體傳(chuan)感器、PID光離子型氣體傳感器(qi)、煙(yan)霧傳感器、TVOC氣體傳(chuan)感器、大顆粒粉塵氣體傳感器、傳感器(qi)及其傳感器糢(mo)塊(kuai)可用于檢(jian)測多達200餘種氣體。
400-891-8898
MEASUREMENT | |
Operating Principle | 2-electrode electrochemical |
Measurement Range | 0-2 ppm O2 |
Maximum Overload | 1000 ppm o2 |
Filter | None |
Output Signal | 50 - 80 mV in air with a 10Ω |
load resistor | |
Response Time (T90) | <20 seconds at 20℃ |
Purge Time:(Ambient air to<10 ppm)
| <6 hours
|
Linearity | Linear |
ELECTRICAL | |
Recommended Load Resistor | 10Ω |
| ELECTRICAL | |
Weight | 32 g |
Housing Material | |
Body | Nickel plated steel |
Current Collectors | Nickel |
Orientation Sensitivity | None |
ENVIRONMENTAL | |
Operating Temperature Range | -20℃ to +50℃ |
Temperature Coefficient | 0.2% signal/℃ |
Recommended Storage Temp | 0℃to 20℃ |
Operating Pressure Range | Atmospheric ±10% |
Operating Humidity Range | 0 -99%6 RH non-condensing |
LIFETIME | |
Long Term Output Drift | <5% signal loss/year |
Expected Operating Life | See below |
Storage Life | 6 months in CTL container |
Standard Warranty | 12 months from date of despatch |
